Highfive Dolby Conference Phone
Ditch your old starfish conference phones for a fully-integrated audio device by Dolby Voice for video and audio conferencing.


Highfive Dolby Conference Phone

Highfive Products
Highfive Dolby Conference Phone
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Equip every room with high-quality teleconference equipment. The Dolby Conference Phone for exceptional audio clarity. Integrated microphones, 360 degree audio, and Dolby Voice technology make meetings sound great every time. Plus, add unlimited dial-out so you can ditch those old starfish conference phones.

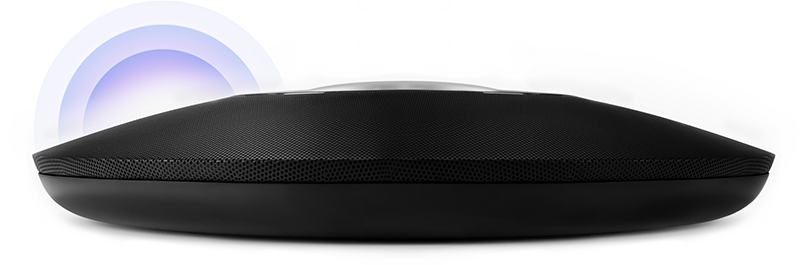

Dolby Voice Mind-Blowing Clarity

You’ve never seen a conference phone like the Dolby Conference Phone. With a 360-degree audio capture and Dolby Voice audio technology, the Dolby Conference Phone picks up everything, even the softest speakers, in rooms as large as 20x30 feet - no ceiling or satellite mics required. Attendees on the other side of the room sound just as good as those close by with volume leveling and spatial voice separation by Dolby Voice.

Dolby Voice Mind-Blowing Clarity


Unlimited Dial-out to Domestic & International Numbers

Need to use someone else’s bridge for a meeting, or just making a quick call to order take-out for that late meeting? With the optional dial-out plan on Select and Plus meeting room plans, in just a few taps on the Dolby Conference Phone, you’re connected. Plus, you get unlimited call minutes for both domestic and international calls.

Unlimited Dial-out to Domestic & International Numbers

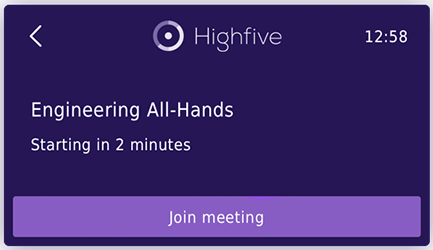

Tap to Join Video Meetings

See if the meeting room is available or if you’re about to get booted with Highfive’s in-room calendar integration right on the touchscreen of the Dolby Conference Phone. Once you’re ready to join your meeting, just tap your meeting on the list and you’re in! No need for a separate device or remote controls in the meeting room.

Tap to Join Video Meetings

Specifications:


Highfive Dolby Conference Phone Specifications
Audio Features
  • Wideband (HD) audio: 160 Hz-8 kHz
  • 20 feet (6.1 m) microphone pickup range
  • 360 degree audio capture
  • Speaker volume: adjustable to 88 dB SPL peak volume at 1/2 m (1.6 ft)
  • Full duplex
  • Noise suppression
  • Acoustic echo cancellation
Features - Highfive with Dolby Voice
  • Voice separation: captures all the voices in the room and maintains separation of voices through the server to Dolby Voice enabled clients; places individual remote conference participants in distinct virtual locations in the room
  • Touch-screen meeting management: mute/unmute and volume controls
  • Further phone features coming in second half of 2016
User Interface
  • Touch interface with swipe support
  • 4.3 inch (0.1 m) LCD display with 480 x 272 resolution
  • LED halo:
    • Blue indicates - in a Highfive meeting
    • Red indicates - muted
  • External tactile keys: Mute and volume control
Security
  • Transport Layer Security (TLS) for authentication and encryption of SIP signaling
  • SRTP encryption for media
  • IEEE 802.1x Network Access Control
Power IEEE 802.3af Power over Ethernet, Class 3 maximum 13 W
Network and Provisioning
  • Ethernet 10/100Base-T
  • DHCP and Static IP IPv4 compatible
  • Provisioning server redundancy
  • QoS Support: IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
  • Hardware diagnostics
  • Status and statistics
  • Field-upgradable firmware
EMC and Safety Compliance
  • UL60950-1
  • CAN/CSA C22.2, No. 60950-1
  • CE Mark (Directive 2006/95EC; 2004/108/EC; 1999/5/EC; 2011/65/EU, 2012/19EU)
  • FCC (47 CFR Part 15 subpart B and C) Class B ICES-003 Class B; IC RSS 210
  • EN55022 Class B; EN300 328
  • EN55024: EN301 489-1: EN301 489-17 EN60950-1
Environmental
  • Operating temperature: 32°F-104°F (0°C-40°C)
  • Relative humidity: 20%-85% (noncondensing)
  • Storage temperature: -22°F-131°F (-30°C-55°C)
Dimensions and Weight
  • HxWxD: 2.2 x 11.8 x 12.6 inch (5.6 x 30 x 32 cm)
  • Net: 4 lb (1.8 kg)
Dolby Satellite Microphone Kit (Optional)
  • Pickup range extended by up to 6.5 ft (2.0 m) per Dolby Satellite Microphone
  • Kit ships with 2 x Dolby Satellite Microphones and 2 x 6.5 ft (2.0 m) cables
Hardware Components
  • 1 x PoE Dolby audio device
  • 1 x 25ft Ethernet cable
Warranty 1 Year

Documentation:

Download the HighFfive Technical Specifications Datasheet (.PDF)
