Highfive Premium Video and Audio Conferencing
An all-new, premium video and audio conferencing experience from Highfive and Dolby Voice.


Highfive Premium Video and Audio Conferencing

Highfive Products
Highfive Premium Video and Audio Conferencing
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

Upgrade your teleconference equipment. Look your best with a premium, 4K HDR video camera built by the people at Dolby and software designed by Highfive. Focus on the important parts of the room by digitally zooming and panning the camera. Plus, zoom in on the physical whiteboard in the room, correcting for angles and lighting, so that remote attendees don’t miss out on the brainstorm session.

Stunning Video Quality

Experience high quality video captured in 1080p with high dynamic range (HDR) video mapping to ensure you can make out every facial expression even with poor lighting.

Stunning Video Quality


Intelligently Adjusts To The Room

Using computer vision and facial recognition technology, the 4K wide-angle camera is able to automatically frame the video capture to where the people are in the room and adjust as they move. No more remote to manually pan, tilt, or zoom the camera throughout the meeting.

Intelligently Adjusts To The Room


Double The Screen Real Estate

With dual-screen support, you can share content on one TV while keeping video feeds from remote attendees on the second TV. In-between meetings, the TVs turn into digital displays showcasing events booked in the room, as well as a custom message you can set.

Double The Screen Real Estate


Everyone Can See The Whiteboard

Remote attendees collaborate like they’re in the room thanks to a whiteboard view that can straighten up an angled board, automatically correcting for distortion and lighting. Plus, you’re able to quickly toggle the view back and forth between the whiteboard and the attendees in the meeting room, so that you control exactly what you want to send.

Everyone Can See The Whiteboard


Dolby Voice Paired With Crystal-Clear Audio

The intelligent camera pairs with the Dolby Conference Phone for an all-around premium collaboration experience. Dynamic leveling technology and a 360 degree audio capture means that you’ll hear everyone clearly and feel like you’re all in the room together.

Uplevel Your Meeting Room Audio

Features:

VIdeo Features

Dolby Voice Room adjusts to changing speakers, action, and lighting conditions, intelligently framing the discussion in real time.

  • Intelligent scene framing
    Using a machine learning algorithm, Dolby Voice Room learns who's talking, dynamically reframing the scene to capture the speaker, while keeping everyone in view, even as you move. Just as importantly, intelligent scene framing avoids jump cuts and tight crops - the whole conversation is captured. And, with digital pan-tilt-zoom (PTZ), it's all accomplished without distracting mechanical camera noise or movement.
  • Whiteboard view
    Dolby Voice Room scales and adjusts the view of the whiteboard, correcting perspective, so that your visuals on the side wall are front and center. Preset the whiteboard area in your room, or select via the touch-screen controls on the Dolby Conference Phone.
  • HDR video mapping
    HDR (high dynamic range) video mapping continuously balances exposure levels, even with changing daylight or difficult room lighting, always allowing you to see in its best possible light. And with HDR, Dolby Voice Room accommodates a wide range of camera vantage points, simplifying setup and installation.
  • Dual Monitor support
    Dolby Voice Room can support two monitors, one for meeting participants and one for content-sharing, or use both monitors for multiple participants.

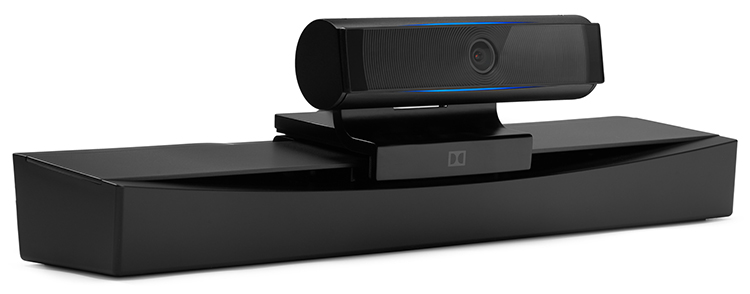

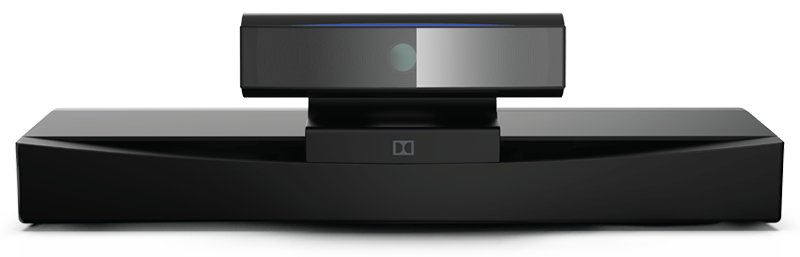

  • Dolby Voice Camera
    The Dolby Voice Camera features a 4K Ultra HD image sensor, 95° wide-angle lens, and multiple mounting configurations - easily adapting to TV or tabletop installations, with secure mounting and precise angle adjustments.

Audio Features

More than a phone, the Dolby Conference Phone is responsible for the Dolby Voice audio experience and is the ideal video conferencing control center.

  • Dynamic leveling
    Dynamic leveling boosts the sound of quiet voices to ensure everyone can be heard, while quickly learning to distinguish speech from noise - powerfully compensating for poor room acoustics, cancelling echoes, and eliminating background noise.
  • Full-room pickup
    Full-room pickup captures near and distant voices, as well as overlapping speech, so that the conversation being had is the conversation being heard.
  • Voice Placement
    Dobly Voice Room makes it easier to follow who's speaking and understand what's being said by making it sound as if each person is speaking from a distinct location, the way it sounds when people are together in a room.
  • Dual mode device
    The phone acts as an endpoint for Dolby Voice-enabled services and a SIP conference phone for IP telephony, versatile enough to equip an entirely new installation or to replace older phones in a legacy systems.
  • Touch-screen interface
    The Dolby Conference Phones's intuitive touch-screen controls and customizable service provider apps make it easy to start, join, and run meetings. The phone provides a simple user experience in a streamlined design, serving as your single interface for video conferencing and screen sharing.
  • Dolby Voice
    The Dolby Voice experience gives people in rooms, at their desks, or on their mobile phones impressively clear audio - actively overcoming common conferencing challenges such as disparate speaking volumes, room size, room acoustics, garbled voices, and background noise. Plus Dolby Voice audio processing is integrated seamlessly into provider services and apps.

Dolby Voice Hub Features

The Dolby Voice hub is Dolby Voice Room's dedicated conferencing platform - integrating with leading service providers and bringing Dolby Voice Room's advanced video features to life.

  • Integrate with service providers
    The fully integrated and immersive service provider experience built with Dolby Voice Room's application ecosystem and SDK delivers an elegant and intuitive user experience that supports more use cases with fewer required room devices, and that allows participants to join, engage, and share content with fewer button touches.
  • Security
    Dolby Voice Room's system security is designed so that both software and hardware are secure across all core components of every Dolby Voice Room. This includes the boot-up process, software updates and remote access control. The tight integration of hardware, software, and provider services ensures that each component of the system is trusted, validated and hardened.
  • Setup and configurations
    Dolby Voice Hub and the connections to the camera and phone epitomize "plug-and-play," and the hub includes a flexible mounting system that enables hardware components to be installed in multiple configurations.
  • Development
    Dolby VOice Hub provides a superior platform for application development and provider services, ensuring that customers have an exceptional meeting experience aligned with their service provider of choice.
  • Dolby Voice Room software
    The hub runs Dolby Voice Room software - handling system funtctions, managing multiple user interfaces, and automatically updating camera and phone firmware and software.
  • Ports and connectivity
    • Gigabit Ethernet
    • Power over Ethernet (PoE) port for connecting to the Dolby Conference Phone
    • Three Universal Serial Bus (USB) 3.0 ports for connecting to the Dolby Voice Camera and to a keyboard for diagnostics
    • Two display ports for connecting to up to two TVs, and one display port for connecting to a computer for content sharing
    • USB OTG 3.0 port for future use

Specifications:


Premium Video and Audio Conferencing Specifications
Dolby Voice Camera
  • Image sensor: 4K, 13
  • Resolution: 1080p30 H.264 (1920x1080)
  • Frame rate: ≤60 fps (frames per second)
  • View angle: 95°
  • Lens: fixed focus f/2.0
  • Zoom: ≤2x digital zoom
  • Outpout format: YUV422
  • Connectivity: USB 3.0
  • Mounting: tilt range +/-20°
  • HDR video mapping
  • Intelligent scene framing
Video
  • Codecs: H.264 Baseline and High Profile
  • Encode: two 1080p30 streams
  • Decode: two 1080p30 streams
Dolby Conference Phone
  • Operating Modes: Dolby Voice, IP phone
  • Service provider integration: IP connection and preconfigured access to Dolby Voice enabled conferencing services
  • Touch-screen meeting management:
    • One-touch meeting start with Bluetooth Low Energy (BLE) connection on supported partner apps
    • Viewable roster of meeting atendees and active speaker, add/remove participants
    • Contact directory with one-touch dialing
    • Mute/unmute, three-way conferencing, conferencing join/split/hold/resume, call waiting, call history
  • Broad interoperability
  • Communication protocols: IETF SIP (RFC 3261 and companion RFCs)
  • Audio feature: full duplex, noise suppression, acoustic ech cancellation, voice placement
  • Audio codecs: DVC/G.711a/G.711u/G.722/G.729ab
  • Audio range: Wideband HD, 160 Hz - 8 kHz
  • Microphone range: 6.1m (20 ft)
  • Peak volume: 88 dB SPL at 1/2 meter (1.6 ft)
Dolby Voice Hub
  • OS: Linux
  • Monitor support: Dual (x2) display out ports
  • Content sharing: Display in port - local/broadcast and wireless sharing through partner apps
  • USB: USB 3.0 host ports (x3), USB 3.0 device port
  • Network: 10/100 Mb (RJ-45) network interface, 10/100 Mb (RJ-45) PoE 802.3af network interface
  • Additional: power port, security lock
Network and Provisioning
  • IP address configuration: TCP/IP (IPv4), DHCP/static IP
  • Web: HTTP/HTTPS web server, web proxy auto-detection and proxy auto-configuration
  • Support, WebRTC
  • Time and data synchronization: SNTP
  • VLAN support: Dolby Voice and IP telephony calls on separate voice and data VLANs
  • QoS support: IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
  • RTCP support: (RFC 1889)
  • LDAP directory support
  • Plug-and-play provisioning enabled by Dolby Voice Console cloud provisioning service
Security
  • Encryption: TLS (Transport Layer Security) for SIP, SRTP encryption for media, 128 bits AES
  • Network Access Control: IEEE 802.1x
  • Built-in certificate
Development
  • Hub: Chromium Web App SDK
  • Phone: Conferencing Service Application SDK
Operating Requirements and Specifications
  • External power adapter: 90-240v AC input
  • Power consumption: Idle <2.8W, normal operating - 24w; max - 30w
  • Operating humidity: 20-85% (non-condensing)
  • Operating temperature: 32°F-104°F (0°C-40°C)
  • Storage temperature: -22°F-122°F (-30°C-50°C)
Hardware Dimensions (HxWxD)
  • Camera + Mount: 2.4 x 5.1 x 3.8 in (6.2 x 13 x 9.6 cm)
  • Phone: 2.2 x 11.8 x 12.6 in (5.6 x 30 x 32 cm)
  • Hub: 1.6 x 12.4 x 4.3 in (4 x 31.5 x 11 cm)
